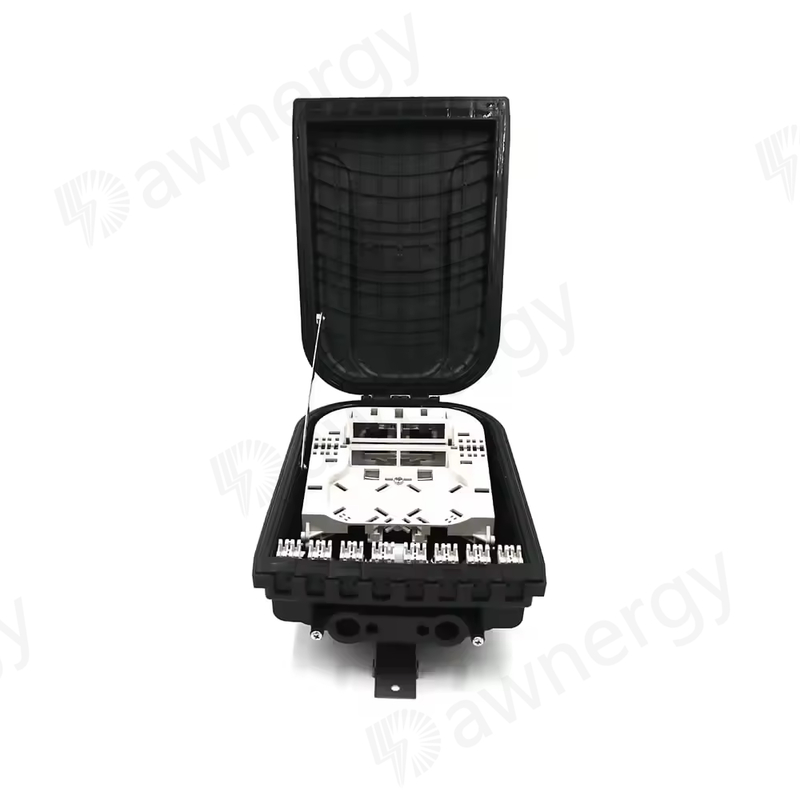

FTTH BOX Easy-to-Install Fiber Distribution Box for FTTH FTTX System
  • FTTH BOX Easy-to-Install Fiber Distribution Box for FTTH FTTX System
  • FTTH BOX Easy-to-Install Fiber Distribution Box for FTTH FTTX System
  • FTTH BOX Easy-to-Install Fiber Distribution Box for FTTH FTTX System
FTTH BOX Easy-to-Install Fiber Distribution Box for FTTH FTTX System

FTTH BOX Easy-to-Install Fiber Distribution Box for FTTH FTTX System

Marca Dawnergy
Certificação CE/FCC/RoHS/ISO9001
Model Number DA-FDB-16G-PA-12
Detalhes do produto
Function:
FTTH FTTX System
Max. Splice tray:
1pc
Material:
PC+ABS
Cable diameter (mm):
5-16
Dimension (mm):
316*250*126
Ports:
8 Ports/16 Ports
Destacar:

Easy To Install Fiber Distribution Box

,

FTTX System Fiber Distribution Box

Termos do pagamento & do transporte
Minimum Order Quantity
1000
Packaging Details
Carton/Pallet
Delivery Time
7-14 Day
Payment Terms
D/A,L/C,D/P,T/T
Descrição do produto
FTTH BOX Easy-to-Install Fiber Distribution Box for FTTH FTTX System
Key Specifications
Function FTTH FTTX System
Max. Splice tray 1pc
Material PC+ABS
Cable diameter (mm) 5-16
Dimension (mm) 316×250×126
Ports 8 Ports/16 Ports
Product Overview

The FTTH Fiber Optic Terminal Box provides efficient termination and distribution of fiber cables for high-performance network applications. Designed for FTTH (Fiber to the Home) and FTTX (Fiber to the X) systems, this solution offers reliable connectivity with support for up to 16 core fusion splices.

Core Features
  • 16 2×3mm Drop Cable Ports for efficient cable management
  • Supports SC, FC, LC, and ST connector types
  • Compact design (316×250×126 mm) for space-efficient installation
  • Certified: CE/FCC/RoHS/ISO9001
  • Brand: Dawnergy
Technical Parameters
Model Number DA-FDB-16G-PA-12
Max. Split ratio 1PC 1×16 Micro Type Splitter
Max. Fusion splice 16 Cores
Connector Type SC, FC, LC, ST
Primary Use FTTH applications
Applications

Ideal for residential and commercial FTTH network installations, this distribution box serves as a crucial termination point for fiber optic cables. Its durable PC+ABS construction ensures reliable performance in various environmental conditions.

Minimum order quantity: 1000 units. Delivery time: 7-14 days. Payment terms: D/A, L/C, D/P, T/T.
